SHARP 4.6inch LM046QB1S02 LCD Panel

Place of Origin : Japan

Brand Name : SHARP

Certification : RoHS Compliant

Model Number : LM046QB1S02

MOQ : 1 PCS

Price : Pls Contact sales team

Packaging Details : MODULE

Delivery Time : stock

Payment Terms : T/T , Paypal, Western Union Escrow etc.

Supply Ability : 1000

Panel Model : LM046QB1S02

Panel Brand : SHARP

Descrition : FSTN-LCD ,4.6 inch, 320×240

Panel Type : FSTN-LCD

Contact Now

SHARP 4.6inch LM046QB1S02 LCD Panel

Specification for LM046QB1S02:

Panel Model

LM046QB1S02

Panel Brand

SHARP

Descrition

FSTN-LCD ,4.6 inch, 320×240

Panel Type

FSTN-LCD

Display Mode

STN, Black/White (Positive), Transflective

Active Area

94.39×70.79 mm

Outline

134×100 mm

Surface

Contrast Ratio

4:1 (Typ.)(Transmissive) 5:1 (Typ.)(Reflective)

Display Colors

Monochrome

Response Time

180/270 (Typ.)(Tr/Td)

Viewing Angle

35/25/30/25 (Typ.)(CR≥2) (L/R/U/D)

Frequency

60Hz

Lamp Type

1 pcs CCFL Without Driver

Signal Interface

Parallel Data (4-bit) , 20 pins

Input Voltage

3.3V (Typ.)

Below is some of our other LCD panel hot offer,pls check if you need any of them:

LT040MDT9000

TOSHIBA

4.0"

480×854

LS037V7DW03

SHARP

3.7"

480×640

M240HV01 V.D

AUO

24.0"

1920×1080

L4S00242P00

Epson

2.8"

480×640

LS037V7DD06

SHARP

3.7"

480×640

TX09D30VM1CBA

KOE

3.5"

240×320

LQ043T1DG02

SHARP

4.3"

480×272

LQ048Y3DG01

SHARP

4.8"

800×480

LQ048Y3DG02

SHARP

4.8"

800×480

LMS480JC01

SAMSUNG

4.8"

1024×600

AMS317PN01

SAMSUNG

3.2"

360×640

TD022SREC6

TPO

2.2"

240×320

TD028STEB2

TPO

2.8"

240×320

TX09D70VM1CCA

KOE

3.5"

240×320

AA084VC03

Mitsubishi

8.4"

640×480

PD064VT8

E Ink

6.4"

640×480

PD064VT5

E Ink

6.4"

640×480

COM50H5M23XTX

5.0"

480×272

COM32H3N74ULC

3.2"

480×800

CLAA057VA01CW

CPT

5.7"

640×480

COM41H4M31XLC

4.1"

320×240

NL2432HC22-44B

NLT

3.5"

240×320

COM50H5125XLC

5.0"

320×240

LS047T1SC02

SHARP

4.7"

1080×1920

LQ030B1DC50J

SHARP

3.0"

320×240

LW700AT6005

INNOLUX

7.0"

800×480

AT056TN52 V.5

INNOLUX

5.6"

640×480

TX09D80VM3CCA

KOE

3.5"

240×320

LQ038Q7DB03

SHARP

3.8"

240×320

LQ065T9BR53U

SHARP

6.5"

400×240

TM035WDH01-00

TIANMA

3.5"

480×640

Product Tags:

general purpose relays



Time delay relay


Wholesale SHARP 4.6inch LM046QB1S02 LCD Panel from china suppliers

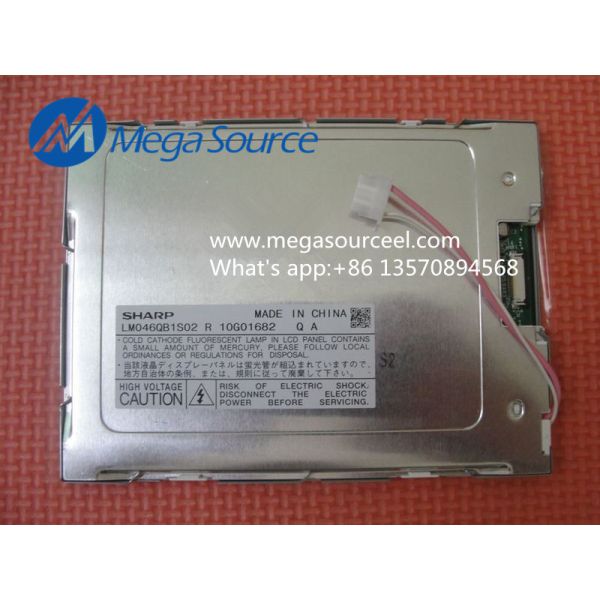

SHARP 4.6inch LM046QB1S02 LCD Panel Images
