INNOLUX 18.5inch M185B1-C01 LCD Panel

Place of Origin : Japan

Brand Name : INNOLUX

Certification : RoHS Compliant

Model Number : M185B1-C01

MOQ : 1 PCS

Price : Pls Contact sales team

Packaging Details : MODULE

Delivery Time : stock

Payment Terms : T/T , Paypal, Western Union Escrow etc.

Supply Ability : 1000

Panel Model : M185B1-C01

Panel Brand : INNOLUX

Descrition : a-Si TFT-LCD ,18.5 inch, 1366×768

Panel Type : a-Si TFT-LCD

Contact Now

INNOLUX 18.5inch M185B1-C01 LCD Panel

Specification for M185B1-C01:

M185B1-C01 Basic Information

Panel Model

M185B1-C01

Panel Brand

CHIMEI INNOLUX

Descrition

a-Si TFT-LCD ,18.5 inch, 1366×768

Panel Type

a-Si TFT-LCD

M185B1-C01 Mechanical Features

Dot Resolution

1366(RGB)×768 (WXGA)

Pixel Configuration

RGB Vertical Stripe

Pixel Density

84 PPI

Aspect Ratio

16:9 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.100×0.300 mm (H×V)

Pixel Pitch

0.300×0.300 mm (H×V)

Surface

Antiglare (Haze 25%), Hard coating (3H)

Active Area

409.8×230.4 mm (H×V)

Outline Dimension

420.65×241.25 mm (H×V)

Outline Depth

1.83 (Typ.) mm

Landscape or Portrait

Landscape type

Touch Panel

Without

M185B1-C01 Optical Features

Display Mode

TN, Normally White, Transmissive

Brightness

0 cd/m²

Contrast Ratio

1000 : 1 (Typ.) (Transmissive)

Response Time

1.5/3.5 (Typ.)(Tr/Td)

Viewing Angle

85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)

White Variation

1.30/1.42 (Typ./Max.)(9 points)

Transmissivity

6.0% (Typ.)(with Polarizer)

Sunlight Readable

N

M185B1-C01 Backlight System

Lamp Type

No B/L

Below is some of our other LCD panel hot offer,pls check if you need any of them:

DMF5001NF

BOE

4.7"

160×128

DMF5001NF-AAE-AW

BOE

4.7"

160×128

DMF-5001NF-AWE-BAN

BOE

4.7"

160×128

DMF5001NF-SEW

BOE

4.7"

160×128

LM64183PR

SHARP

9.4"

640×480

LM64P839

SHARP

9.4"

640×480

LQ104V1DG81

SHARP

10.4"

640×480

LQ088K9RA01

SHARP

8.8"

1280×480

LQ084S3LG03

SHARP

8.4"

800×600

LQ150X1LG11

SHARP

15.0"

1024×768

LQ101K5DZ01

SHARP

10.1"

1280×422

LQ156M3LW01

SHARP

15.6"

1920×1080

LQ156M1LG21

SHARP

15.6"

1920×1080

LQ190E1LX75

SHARP

19.0"

1280×1024

LQ040Y3DX80B

SHARP

4.0"

480×800

LQ070K1LX80

SHARP

7.0"

800×1280

LQ190E1LW62

SHARP

19.0"

1280×1024

LQ121S1LG72

SHARP

12.1"

800×600

LQ150X1LX92

SHARP

15.0"

1024×768

NL2432HC22-41K

NLT

3.5"

240×320

HV070WS1-1E1

HYDIS

7.0"

1024×600

LD070WS2-SL07

LG Display

7.0"

1024×600

LTM190E1-L03

SAMSUNG

19.0"

1280×1024

LTA065B096D

TOSHIBA

6.5"

400×234

LQ057Q3DG02

SHARP

5.7"

320×240

KCG047QV1AA-G060

BOE

4.7"

320×240

LTA070B792F

TOSHIBA

7.0"

800×480

AT050TN22 V.1

INNOLUX

5.0"

640×480

LJ640U31

SHARP

8.9"

640×400

NL10276BC24-21L

NLT

12.1"

1024×768

M150XN07 V9

AUO

15.0"

1024×768

NL6448BC20-18D

NLT

6.5"

640×480

CLAA070LC0ECT

CPT

7.0"

800×480

N080ICE-GB0 Rev.C1

INNOLUX

8.0"

800×1280

TLX-1301V-30

TOSHIBA

7.8"

256×128

TM070RBh01

TIANMA

7.0"

800×480

TM070RBHG03

TIANMA

7.0"

640×480

HE070IA-04E

INNOLUX

7.0"

800×1280

Product Tags:

High sensitive delay



Time delay relay


Wholesale INNOLUX 18.5inch M185B1-C01 LCD Panel from china suppliers

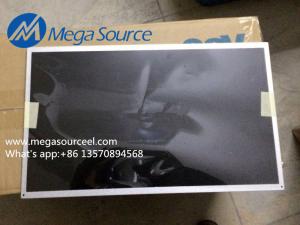

INNOLUX 18.5inch M185B1-C01 LCD Panel Images
