PVI 5inch PD050VX5 LCD Panel

Place of Origin : Japan

Brand Name : PVI

Certification : RoHS Compliant

Model Number : PD050VX5

MOQ : 1 PCS

Price : Pls Contact sales team

Packaging Details : MODULE

Delivery Time : stock

Payment Terms : T/T , Paypal, Western Union Escrow etc.

Supply Ability : 1000

Panel Model : PD050VX5

Panel Brand : PVI

Descrition : a-Si TFT-LCD ,5.0 inch, 480×640

Panel Type : a-Si TFT-LCD

Contact Now

PVI 5inch PD050VX5 LCD Panel

Specification for PD050VX5:

PD050VX5 Basic Information

Panel Model

PD050VX5

Panel Brand

PVI

Descrition

a-Si TFT-LCD ,5.0 inch, 480×640

Panel Type

a-Si TFT-LCD

Operating Temperature

-20 ~ 70 °C

Storage Temperature

-30 ~ 80 °C

PD050VX5 Mechanical Features

Dot Resolution

480×640(RGB) (VGA)

Pixel Configuration

RGB Horizontal Stripe

Pixel Density

160 PPI

Aspect Ratio

3:4 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.156×0.053 mm (H×V)

Pixel Pitch

0.156×0.159 mm (H×V)

Weight

40±5g

Surface

Without Polarizer

Active Area

74.88×101.76 mm (H×V)

Outline Dimension

87.63×115.32 mm (H×V)

Outline Depth

1.4±0.14 mm

Landscape or Portrait

Portrait type

Touch Panel

Without

PD050VX5 Optical Features

Display Mode

TN, Normally White, Transmissive

Brightness

0 cd/m²

Contrast Ratio

400 : 1 (Typ.) (Transmissive)

Display Color

262K (6-bit)

Response Time

15/25 (Typ.)(Tr/Td)

Viewing Angle

60/60/35/50 (Typ.)(CR≥10) (L/R/U/D)

Transmissivity

7.0% (Typ.)(with Polarizer)

Sunlight Readable

N

PD050VX5 Electronics Feature

Reverse Scan

Yes (U/D, L/R)

Time Controller (T-CON)

Need external T-CON: PVI-2003A

PD050VX5 Backlight System

Lamp Type

No B/L

Lamp Driver Board

No

PD050VX5 Signal Interface

Signal Category

TTL

Signal Class

TTL (1 ch, 6-bit)

Input Voltage for Panel

3.3/3.3/9.5V (Typ.)(VCC/VDD1/VDD2)

Input Current for Panel

0.0153/11.26/16.2/0.162/0.22mA (Typ.)(ICC/IDD1/IDD2/ICG/IEE)

Panel Power Consumption

196.31/266.75mW (Typ./Max.)

Interface Type

FPC

Below is some of our other LCD panel hot offer,pls check if you need any of them:

LTM220M3-L02

SAMSUNG

22.0"

1680×1050

DJ103IA-03B

INNOLUX

10.3"

1920×720

HJ050NA-01k

INNOLUX

5.0"

800×480

AT056TN52 V.5

INNOLUX

5.6"

640×480

PD057VU5

E Ink

5.7"

320×240

HSD070PWW1-B01

HannStar

7.0"

1280×800

LC064N1

LG Display

6.4"

640×480

LQ106K1LA05

SHARP

10.6"

1280×768

EW32F00BCW

EDT

4.7"

320×240

CLAA101WJ03 XG

CPT

10.1"

1366×768

SP14N02L6ALCZ

KOE

5.1"

240×128

LCBHBT161M

NAN YA

5.7"

320×240

L5F30705T14

Epson

5.0"

480×240

EW50585BCW

EDT

5.2"

320×240

KCB060VG1CB-G60

KYOCERA

6.0"

640×480

FG050605DNCWBGL4

Data Image

5.6"

320×234

N080ICE-GB1

INNOLUX

8.0"

800×1280

KCS072VG1MB-G42

Kyocera

7.2"

640×480

NL160120AC27-32B

NLT

21.3"

1600×1200

PD024OX2

E Ink

2.4"

480×240

PW035XU1

E Ink

3.5"

320×234

PD040QX1

E Ink

4.0"

320×240

PA040XS1

E Ink

4.0"

320×234

PA050XSG

E Ink

5.0"

320×234

PA050DS7

E Ink

5.0"

320×234

PD050OX1

E Ink

5.0"

480×480

PD050VX6

E Ink

5.0"

640×480

PD057VT3

E Ink

5.7"

640×480

PA064DS1

E Ink

6.4"

320×234

PD064VT5

E Ink

6.4"

640×480

PW070XU3

E Ink

7.0"

480×234

LB040Q02-TD02

LG Display

4.0"

320×240

LB040Q03-TD01

LG Display

4.0"

320×240

LM32C041

SHARP

5.5"

320×240

PH320240T-006-IP4Q

3.5"

320×240

A030FL01 V2

AUO

3.0"

480×272

A035CN01

AUO

3.5"

480×234

Product Tags:

High sensitive delay



Time delay relay


Wholesale PVI 5inch PD050VX5 LCD Panel from china suppliers

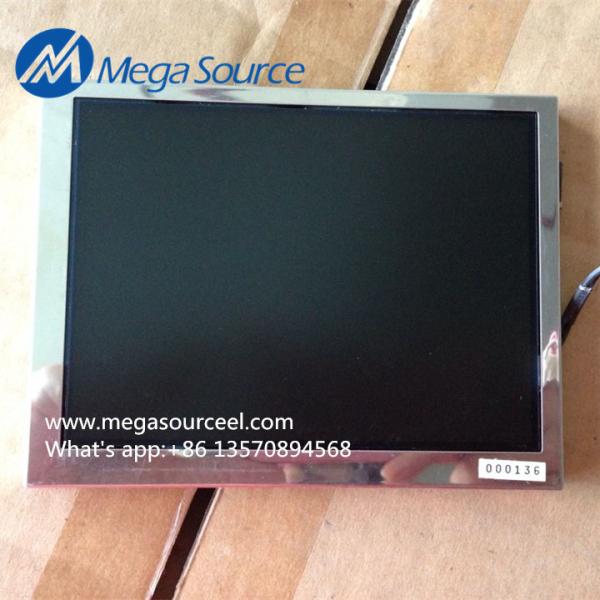

PVI 5inch PD050VX5 LCD Panel Images
