PVI 3.5inch PA035XUK LCD Panel

Place of Origin : Japan

Brand Name : PVI

Certification : RoHS Compliant

Model Number : PA035XUK

MOQ : 1 PCS

Price : Pls Contact sales team

Packaging Details : MODULE

Delivery Time : stock

Payment Terms : T/T , Paypal, Western Union Escrow etc.

Supply Ability : 1000

Panel Model : PA035XUK

Panel Brand : PVI

Descrition : a-Si TFT-LCD ,3.5 inch, 480×234

Panel Type : a-Si TFT-LCD

Contact Now

PVI 3.5inch PA035XUK LCD Panel

Specification for PA035XUK:

PA035XUK Basic Information

Panel Model	PA035XUK
Panel Brand	PVI
Descrition	a-Si TFT-LCD ,3.5 inch, 480×234
Panel Type	a-Si TFT-LCD
Operating Temperature	0 ~ 60 °C
Storage Temperature	-20 ~ 70 °C

PA035XUK Mechanical Features

Dot Resolution	480(RGB)×234
Pixel Configuration	RGB Vertical Stripe
Pixel Density	154 PPI
Aspect Ratio	7:5 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.050×0.216 mm (H×V)
Pixel Pitch	0.150×0.216 mm (H×V)
Weight	16±3g
Surface	Antiglare
Active Area	72×50.544 mm (H×V)
Outline Dimension	80×57.9 mm (H×V)
Outline Depth	1.68 (Typ.) mm
Landscape or Portrait	Landscape type
Touch Panel	Without

PA035XUK Optical Features

Display Mode	TN, Normally White, Transmissive
Brightness	0 cd/m²
Contrast Ratio	350 : 1 (Typ.) (Transmissive)
Display Color	Full color ()
Response Time	15/25 (Typ.)(Tr/Td)
Viewing Angle	50/50/15/35 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction	6 o'clock
Transmissivity	7.5% (Typ.)(with Polarizer)
Sunlight Readable	N

PA035XUK Electronics Feature

Vertical Frequency	60Hz
Reverse Scan	Yes (U/D, L/R)
Time Controller (T-CON)	Need external T-CON

PA035XUK Backlight System

Lamp Type	No B/L

PA035XUK Signal Interface

Signal Category	Analog
Signal Class	TFT Specific Analog RGB
Input Voltage for Panel	3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD/AVDD/VGH/VGL)
Input Current for Panel	0.01/0.6/5.2/0.09/0.09mA (Typ.)(ICC/IDD/AIDD/IGH/IGL)
Panel Power Consumption	30.57mW (Typ.)
Interface Type	FPC

Below is some of our other LCD panel hot offer,pls check if you need any of them:

M190A1-L10	INNOLUX	19.0"	1440×900
M190CGE-L20	INNOLUX	19.0"	1440×900
CLAA089NA0BCW	CPT	8.9"	1024×600
LP097X02-SLG4	LG Display	9.7"	1024×768
CLAA100XB01	CPT	10.0"	1024×768
LTM10C321F	TOSHIBA	10.4"	1024×768
LTM10C348F	TOSHIBA	10.4"	800×600
LTD106EWNN	TOSHIBA	10.6"	1280×768
LP150E07-TL03	LG Display	15.0"	1400×1050
M150XN07 V1	AUO	15.0"	1024×768
QD15XL02 Rev.01	QDI	15.0"	1024×768
MT190AW02 V.0	INNOLUX	19.0"	1440×900
HSD100IFW1-F01	HannStar	10.1"	1024×600
HSD100IFW1-F03	HannStar	10.1"	1024×600
HSD101PFW4-B01	HannStar	10.1"	1024×600
CLAA104XA01CW	CPT	10.4"	1024×768
HT150X02-100	BOE	15.0"	1024×768
N150X1-L02	INNOLUX	15.0"	1024×768
LM190WH1-TLA1	LG Display	18.5"	1366×768
LP097QX1-SPAV	LG Display	9.7"	2048×1536
LTM10C352	TOSHIBA	10.4"	800×600
LP150U06-A2	LG Display	15.0"	1600×1200
M190EG02 V4	AUO	19.0"	1280×1024
HSD097PXN1-B00	HannStar	9.7"	1024×768
HT12X21-220	HYDIS	12.1"	1024×768
CLAA150XP07CW	CPT	15.0"	1024×768
LTM150XO-L01	SAMSUNG	15.0"	1024×768
HSD101PFW4-A00	HannStar	10.1"	1024×600
CLAA150XP07Q	CPT	15.0"	1024×768
HM150X01-102	BOE	15.0"	1024×768
LM190E05-SL01	LG Display	19.0"	1280×1024
M190EN02 V2	AUO	19.0"	1280×1024
HSD101PWW1-G10	HannStar	10.1"	1280×800
LTM10C321U	TOSHIBA	10.4"	1024×768
CLAA150XP01Q	CPT	15.0"	1024×768
M190EN03 V3	AUO	19.0"	1280×1024

Product Tags:

general purpose relays

High sensitive delay

Wholesale PVI 3.5inch PA035XUK LCD Panel from china suppliers

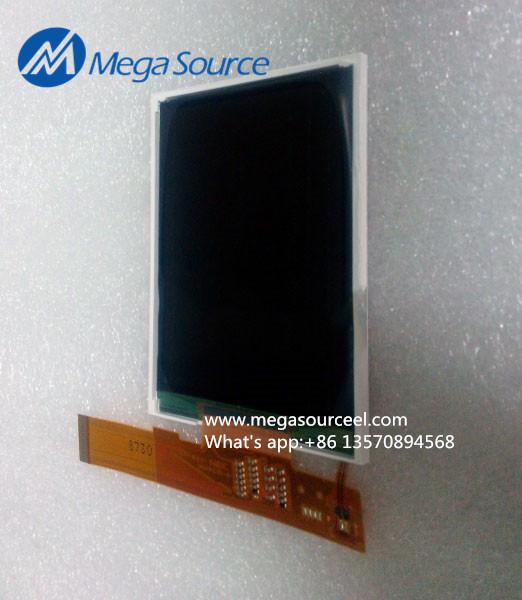

PVI 3.5inch PA035XUK LCD Panel Images
