TPO 3.5inch 990000553 LCD Panel

Place of Origin : Japan

Brand Name : TPO

Certification : RoHS Compliant

Model Number : 990000553

MOQ : 1 PCS

Price : Pls Contact sales team

Packaging Details : MODULE

Delivery Time : stock

Payment Terms : T/T , Paypal, Western Union Escrow etc.

Supply Ability : 1000

Panel Model : 990000553

Panel Brand : TPO

Descrition : LTPS TFT-LCD ,3.5 inch, 320×240

Panel Type : LTPS TFT-LCD

Contact Now

TPO 3.5inch 990000553 LCD Panel

Specification for 990000553:

990000553 Basic Information

Panel Model

990000553

Panel Brand

TPO

Descrition

LTPS TFT-LCD ,3.5 inch, 320×240

Panel Type

LTPS TFT-LCD

Operating Temperature

-20 ~ 60 °C

Storage Temperature

-30 ~ 70 °C

990000553 Mechanical Features

Dot Resolution

320(RGB)×240 (QVGA)

Pixel Configuration

RGB Vertical Stripe

Pixel Density

115 PPI

Aspect Ratio

4:3 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.073×0.219 mm (H×V)

Pixel Pitch

0.219×0.219 mm (H×V)

Weight

TBD

Active Area

70.08×52.56 mm (H×V)

Bezel Area

71.08×53.56 mm (H×V)

Outline Dimension

77.43×65.1 mm (H×V)

Outline Depth

2.5±0.15 mm

Landscape or Portrait

Landscape type

Touch Panel

Without

990000553 Optical Features

Display Mode

TN, Normally White, Transmissive

Brightness

530 cd/m² (Typ.)

Contrast Ratio

300 : 1 (Typ.) (Transmissive)

Display Color

262K (6-bit)

Color Gamut

50% NTSC (CIE1931)

Response Time

20 (Typ.)(Tr+Td)

Viewing Angle

60/60/55/60 (Typ.)(CR≥10) (L/R/U/D)

White color Chromaticity

Wx:0.310; Wy:0.330

White Variation

1.25/1.33 (Typ./Max.)(9 points)

Sunlight Readable

N

990000553 Electronics Feature

Total Power Consumption

365mW (Typ.)

990000553 Backlight System

Lamp Position

Edge light type

Lamp Type

WLED

Lamp Shape

1 string

Lamp Life Time

10K(Typ.) (Hours)

Lamp Voltage

19.2/21.0V (Typ./Max.)

Lamp Current

20mA (Typ.)

Interface Type

Included in panel signal interface

Lamp Driver Board

No

990000553 Signal Interface

Signal Category

CPU

Signal Class

CPU

Input Voltage for Panel

1.8/2.8V (Typ.)(VDDIO/VDC)

Panel Power Consumption

45mW (Typ.)

Interface Type

Connector

Signal Interface

Kyocera Elco - 10-5602-034-000-829H+, Pitch:0.4 mm, Pin:34 pins

Below is some of our other LCD panel hot offer,pls check if you need any of them:

LTM184HL01

SAMSUNG

18.4"

1920×1080

FG050605DNCWAG01

5.6"

320×234

TM050NBH01

TIANMA

5.0"

480×272

NL10276BC30-33D

NLT

15.0"

1024×768

LQ10D421

SHARP

10.4"

640×480

LS055T3SX05

SHARP

5.5"

1080×1920

LQ104V1LG92

SHARP

10.4"

640×480

NV156FHM-N43

BOE

15.6"

1920×1080

ZJ050NA-08C

INNOLUX

5.0"

640×480

AT050TN30

INNOLUX

5.0"

480×272

P070BAG-CM1

INNOLUX

7.0"

1024×600

EJ080NA-04C

INNOLUX

8.0"

1024×768

LMG6411PLGE

KOE

5.4"

240×128

V236BJ1-LE2

INNOLUX

23.6"

1366×768

NL6448BC33-64D

NLT

10.4"

640×480

LQ043T3DG02

SHARP

4.3"

480×272

LQ064V3DG01

SHARP

6.4"

640×480

LQ104V1DC21

SHARP

10.4"

640×480

TM057KDH03

TIANMA

5.7"

320×240

TM050QDH04

TIANMA

5.0"

640×480

TM070SDH05

TIANMA

7.0"

800×600

HE050NA-01F

INNOLUX

5.0"

800×480

TM035KFH01

TIANMA

3.5"

320×240

TM104SDH02

TIANMA

10.4"

800×600

TM070DDH09

TIANMA

7.0"

1024×600

TM081JDH02

TIANMA

8.1"

800×1280

TM070DDH08

TIANMA

7.0"

1024×600

TM097TDH05

TIANMA

9.7"

1024×768

TM062RDH03

TIANMA

6.2"

800×480

TM070RDZ07

TIANMA

7.0"

800×480

LB070WQ7-TD02

LG Display

7.0"

480×234

LB070WV7-TL01

LG Display

7.0"

800×480

TM060RDH02

TIANMA

6.0"

800×480

LB060S01-FD01

LG Display

6.0"

800×600

LQ043T5DG02

SHARP

4.3"

480×234

TM070DDH05

TIANMA

7.0"

1024×600

CLAA101NC01CW

CPT

10.1"

1024×600

PM070WX1

E Ink

7.0"

800×480

TM097TDH01

TIANMA

9.7"

1024×768

Product Tags:

lcd panel monitor



portable lcd monitor


Wholesale TPO 3.5inch 990000553 LCD Panel from china suppliers

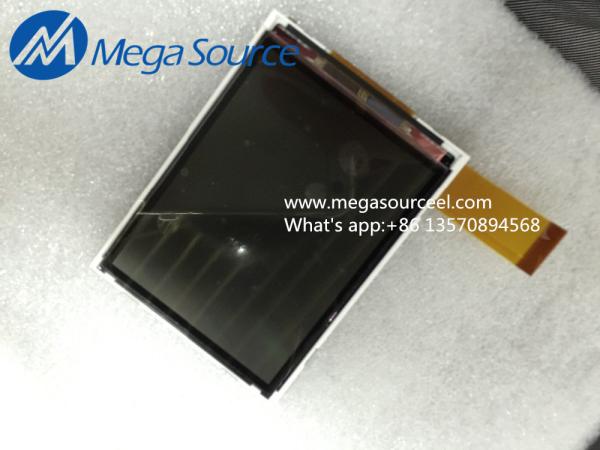

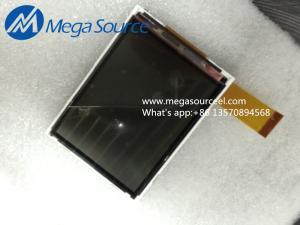

TPO 3.5inch 990000553 LCD Panel Images
