Kyocera 7.5inch TCG075VG2CC-G00 LCD Panel

Product Categories
Mega Source Elec.Limited
Contact Now

Kyocera 7.5inch TCG075VG2CC-G00 LCD Panel

Place of Origin : Japan

Brand Name : Kyocera

Certification : RoHS Compliant

Model Number : TCG075VG2CC-G00

MOQ : 1 Pcs

Price : Pls Contact sales team

Packaging Details : MODULE

Delivery Time : stock

Payment Terms : T/T , Paypal, Western Union ,Escrow etc.

Supply Ability : 1000

Panel Model : TCG075VG2CC-G00

Panel Brand : Kyocera

Descrition : a-Si TFT-LCD ,7.5 inch, 640×480

Panel Type : a-Si TFT-LCD

Contact Now

Kyocera 7.5inch TCG075VG2CC-G00 LCD Panel

Specification for TCG075VG2CC-G00:

TCG075VG2CC-G00 Basic Information

Panel Model

TCG075VG2CC-G00

Panel Brand

Kyocera

Descrition

a-Si TFT-LCD ,7.5 inch, 640×480

Panel Type

a-Si TFT-LCD

TCG075VG2CC-G00 Mechanical Features

Dot Resolution

640(RGB)×480 (VGA)

Pixel Configuration

RGB Vertical Stripe

Pixel Density

107 PPI

Aspect Ratio

4:3 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.079×0.237 mm (H×V)

Pixel Pitch

0.237×0.237 mm (H×V)

Active Area

151.68×113.76 mm (H×V)

Landscape or Portrait

Landscape type

Touch Panel

Without

TCG075VG2CC-G00 Optical Features

Display Mode

TN, Normally White, Transmissive

Display Color

262K (6-bit)

Response Time

5/15 (Typ.)(Tr/Td)

Sunlight Readable

N

TCG075VG2CC-G00 Electronics Feature

Vertical Frequency

60Hz

TCG075VG2CC-G00 Backlight System

Lamp Position

Edge light type

Lamp Type

CCFL

Interface Type

Connector

Lamp Driver Board

No

TCG075VG2CC-G00 Signal Interface

Signal Category

TTL

Signal Class

Parallel RGB (1 ch, 6-bit)

Interface Type

Connector

Below is some of our other LCD panel hot offer,pls check if you need any of them:

LQ035Q5DG04

SHARP

3.5"

320×240

TX09D70VM1CBA

KOE

3.5"

240×320

TX09D70VM1CBB

KOE

3.5"

240×320

TM038QV-67A02A

SANYO

3.8"

320×240

LQ035Q2DD55

SHARP

3.5"

240×320

LS024Q8DD92

SHARP

2.4"

240×320

LS024Q8DB91

SHARP

2.4"

240×320

LQ035Q2DD56

SHARP

3.5"

320×240

UG-2828GDEDF11

　

1.5"

128×128

LQ070Y3DG03

SHARP

7.0"

800×480

LQ043T1DG03A

SHARP

4.3"

480×272

LQ043T1DG04

SHARP

4.3"

480×272

KCS6448FSTT-X6

BOE

10.4"

640×480

KHB084SV1AA-G83

BOE

8.4"

800×600

TX13D03VM1CAA

KOE

5.0"

640×480

LMS245DC07

SAMSUNG

2.4"

480×360

TM038QV-67A02

SANYO

3.8"

320×240

NL6448BC26-08D

NLT

8.4"

640×480

LM215WF3-SLL1

LG Display

21.5"

1920×1080

LQ080V3DG01

SHARP

8.0"

640×480

LM215WF3-SLC1

LG Display

21.5"

1920×1080

LS040B3SX01

SHARP

4.0"

640×960

H345VW01 V0

AUO

3.5"

480×800

LMS320HF0X-001

SAMSUNG

3.2"

240×432

KGM863A1

Giantplus

2.4"

240×320

LS024J3LX01

SHARP

2.4"

320×480

LMS283GF11

SAMSUNG

2.8"

240×320

TM038QV-67A03

SANYO

3.8"

320×240

H429AAN01.1

AUO

4.3"

540×960

TM040YDZ01

TIANMA

4.0"

480×800

H275QW01 V0

AUO

2.8"

240×400

LQ038Q7DB03R

SHARP

3.8"

240×320

T26JHS00

2.6"

320×240

HSD060CHW1-A00

HannStar

6.0"

720×1280

UG-2832KLBEG04

　

0.91"

128×32

LQ035Q7DH07

SHARP

3.5"

240×320

LQ035Q7DH08

SHARP

3.5"

240×320

LS035Y8DX04A

SHARP

3.5"

480×800

Product Tags:

portable lcd monitor



innolux lcd panel


Wholesale Kyocera 7.5inch TCG075VG2CC-G00 LCD Panel from china suppliers

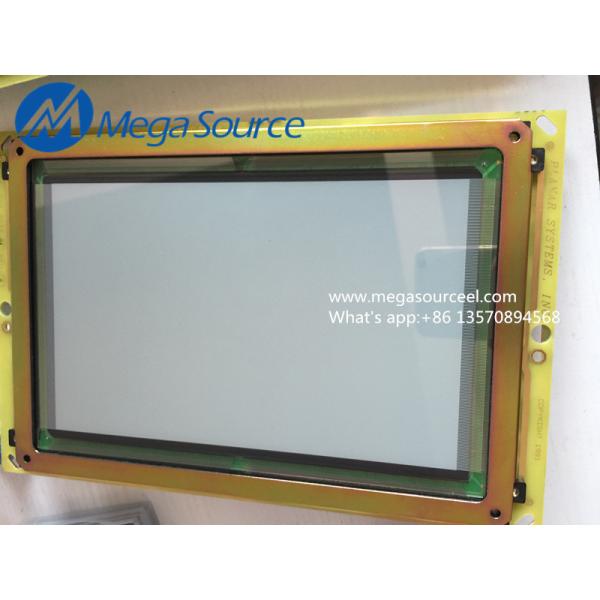

Kyocera 7.5inch TCG075VG2CC-G00 LCD Panel Images
