Kyocera 7.5inch TCG075VGLCJ-G00 LCD Panel

Product Categories
Mega Source Elec.Limited
Contact Now

Kyocera 7.5inch TCG075VGLCJ-G00 LCD Panel

Place of Origin : Japan

Brand Name : Kyocera

Certification : RoHS Compliant

Model Number : TCG075VGLCJ-G00

MOQ : 1 Pcs

Price : Pls Contact sales team

Packaging Details : MODULE

Delivery Time : stock

Payment Terms : T/T , Paypal, Western Union ,Escrow etc.

Supply Ability : 1000

Panel Model : TCG075VGLCJ-G00

Panel Brand : Kyocera

Descrition : a-Si TFT-LCD ,7.5 inch, 640×480

Panel Type : a-Si TFT-LCD

Contact Now

Kyocera 7.5inch TCG075VGLCJ-G00 LCD Panel

Specification for TCG075VGLCJ-G00:

TCG075VGLCJ-G00 Basic Information

Panel Model

TCG075VGLCJ-G00

Panel Brand

Kyocera

Descrition

a-Si TFT-LCD ,7.5 inch, 640×480

Panel Type

a-Si TFT-LCD

Operating Temperature

-20 ~ 70 °C

TCG075VGLCJ-G00 Mechanical Features

Dot Resolution

640(RGB)×480 (VGA)

Pixel Configuration

RGB Vertical Stripe

Pixel Density

107 PPI

Aspect Ratio

4:3 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.079×0.237 mm (H×V)

Pixel Pitch

0.237×0.237 mm (H×V)

Active Area

151.68×113.76 mm (H×V)

Outline Dimension

184×139.8 mm (H×V)

Outline Depth

14.45±0.8 mm

Landscape or Portrait

Landscape type

Touch Panel

Embeded (4-wire Resistive)

TCG075VGLCJ-G00 Optical Features

Display Mode

TN, Normally White

Brightness

220 cd/m² (Typ.)

Contrast Ratio

500 : 1 (Typ.) (Transmissive)

Display Color

262K (6-bit)

Response Time

5/15 (Typ.)(Tr/Td)

Viewing Angle

80/80/80/80 (Typ.)(CR≥5) (L/R/U/D)

Sunlight Readable

N

TCG075VGLCJ-G00 Electronics Feature

Reverse Scan

Yes (U/D, L/R)

TCG075VGLCJ-G00 Backlight System

Lamp Position

Edge light type

Lamp Type

WLED

Lamp Life Time

50K(Typ.) (Hours)

TCG075VGLCJ-G00 Signal Interface

Signal Category

TTL

Signal Class

Parallel RGB (1 ch, 6-bit)

Input Voltage for Panel

3.3V (Typ.)

Interface Type

Connector

Below is some of our other LCD panel hot offer,pls check if you need any of them:

HSD101PWW1-B00

HannStar

10.1"

1280×800

HT185WX1-100

BOE

18.5"

1366×768

HV070WX2-100

HYDIS

7.0"

800×1280

HX121WX1-110

HYDIS

12.1"

1280×800

ITQX21J

IDTech

20.8"

2048×1536

LB104S01-TL04

LG Display

10.4"

800×600

LB121S03-TL05

LG Display

12.1"

800×600

LC170WXN-SAA1

LG Display

17.0"

1366×768

LM170E03-TLG1

LG Display

17.0"

1280×1024

LM240WU8-SLA1

LG Display

24.0"

1920×1200

LM270WQ1-SDF1

LG Display

27.0"

2560×1440

LQ035Q1DG01

SHARP

3.5"

320×240

LQ035Q3DW02

SHARP

3.5"

320×240

LQ050A5BS01

SHARP

5.0"

320×234

LQ050Q3DG01

SHARP

5.0"

320×240

SJ050NA-08A

INNOLUX

5.0"

640×480

LD089WX2-SL02

LG Display

8.9"

1280×768

LB104S04-TL02

LG Display

10.4"

800×600

LB104S02-TD01

LG Display

10.4"

800×600

AA104VC02

Mitsubishi

10.4"

640×480

LB150X03-TL01

LG Display

15.0"

1024×768

LB170X01-TL01

LG Display

17.0"

1024×502

LB035Q04-TD08

LG Display

3.5"

320×240

LB048WV1-TL01

LG Display

4.8"

800×480

G185HAN01.0

AUO

18.5"

1920×1080

LB170E01-SL01

LG Display

17.0"

1280×1024

LP173WF4-SPF2

LG Display

17.3"

1920×1080

LM190E0C-SLA1

LG Display

19.0"

1280×1024

LM200WD1-TLC1

LG Display

20.0"

1600×900

LM201WE2-SLA1

LG Display

20.1"

1680×1050

LM215WF1-TLE1

LG Display

21.5"

1920×1080

LTM215HT05

SAMSUNG

21.5"

1920×1080

LTM220CS01

SAMSUNG

22.0"

1920×1200

LTM220M3-L02

SAMSUNG

22.0"

1680×1050

DJ103IA-03B

INNOLUX

10.3"

1920×720

HJ050NA-01k

INNOLUX

5.0"

800×480

AT056TN52 V.5

INNOLUX

5.6"

640×480

Product Tags:

lcd panel monitor



portable lcd monitor


Wholesale Kyocera 7.5inch TCG075VGLCJ-G00 LCD Panel from china suppliers

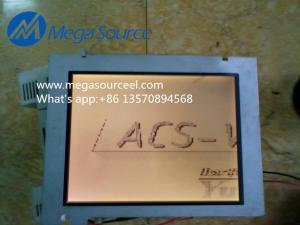

Kyocera 7.5inch TCG075VGLCJ-G00 LCD Panel Images
