KOE 10.1inch TX26D24VC0AAA LCD Panel

Place of Origin : Japan

Brand Name : KOE

Certification : RoHS Compliant

Model Number : TX26D24VC0AAA

MOQ : 1 Pcs

Price : Pls Contact sales team

Packaging Details : MODULE

Delivery Time : stock

Payment Terms : T/T , Paypal, Western Union ,Escrow etc.

Supply Ability : 1000

Panel Model : TX26D24VC0AAA

Panel Brand : KOE

Descrition : a-Si TFT-LCD ,10.1 inch, 1280×800

Panel Type : a-Si TFT-LCD

Contact Now

KOE 10.1inch TX26D24VC0AAA LCD Panel

Specification for TX26D24VC0AAA:

TX26D24VC0AAA Basic Information

Panel Model	TX26D24VC0AAA
Panel Brand	KOE
Descrition	a-Si TFT-LCD ,10.1 inch, 1280×800
Panel Type	a-Si TFT-LCD
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

TX26D24VC0AAA Mechanical Features

Dot Resolution	1280(RGB)×800 (WXGA)
Pixel Configuration	RGB Vertical Stripe
Pixel Density	149 PPI
Aspect Ratio	16:10 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.0565×0.1695 mm (H×V)
Pixel Pitch	0.1695×0.1695 mm (H×V)
Weight	146g (Typ.)
Active Area	216.96×135.6 mm (H×V)
Outline Dimension	229.46×149.1 mm (H×V)
Outline Depth	2.4/4.31 (Typ./Max.) mm
Holes & Brackets	Without
Landscape or Portrait	Landscape type
Touch Panel	Without

TX26D24VC0AAA Optical Features

Display Mode	IPS, Normally Black, Transmissive
Brightness	350 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (Transmissive)
Display Color	16.7M (8-bit)
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction	Symmetry
White color Chromaticity	Wx:0.310; Wy:0.330
White Variation	1.33/1.43 (Typ./Max.)(9 points)
Sunlight Readable	N

TX26D24VC0AAA Electronics Feature

Vertical Frequency	60Hz
Reverse Scan	No

TX26D24VC0AAA Backlight System

Lamp Position	Edge light type
Lamp Type	WLED
Interface Type	Included in panel signal interface
Lamp Driver Board	3.0W (Typ.)

TX26D24VC0AAA Signal Interface

Signal Category	LVDS
Signal Class	LVDS (1 ch, 8-bit)
Input Voltage for Panel	3.3V (Typ.)
Panel Power Consumption	0.9W (Typ.)
Interface Type	Connector
Interface Position
Signal Interface	Vigorconn - F62240-H1210A, Pitch:0.5 mm, Pin:40 pins

Below is some of our other LCD panel hot offer,pls check if you need any of them:

LS024Q8DB91	SHARP	2.4"	240×320
LQ035Q2DD56	SHARP	3.5"	320×240
UG-2828GDEDF11		1.5"	128×128
LQ070Y3DG03	SHARP	7.0"	800×480
LQ043T1DG03A	SHARP	4.3"	480×272
LQ043T1DG04	SHARP	4.3"	480×272
KCS6448FSTT-X6	BOE	10.4"	640×480
KHB084SV1AA-G83	BOE	8.4"	800×600
TX13D03VM1CAA	KOE	5.0"	640×480
LMS245DC07	SAMSUNG	2.4"	480×360
TM038QV-67A02	SANYO	3.8"	320×240
NL6448BC26-08D	NLT	8.4"	640×480
LM215WF3-SLL1	LG Display	21.5"	1920×1080
LQ080V3DG01	SHARP	8.0"	640×480
LM215WF3-SLC1	LG Display	21.5"	1920×1080
LS040B3SX01	SHARP	4.0"	640×960
H345VW01 V0	AUO	3.5"	480×800
LMS320HF0X-001	SAMSUNG	3.2"	240×432
KGM863A1	Giantplus	2.4"	240×320
LS024J3LX01	SHARP	2.4"	320×480
LMS283GF11	SAMSUNG	2.8"	240×320
TM038QV-67A03	SANYO	3.8"	320×240
H429AAN01.1	AUO	4.3"	540×960
TM040YDZ01	TIANMA	4.0"	480×800
H275QW01 V0	AUO	2.8"	240×400
LQ038Q7DB03R	SHARP	3.8"	240×320
T26JHS00		2.6"	320×240
HSD060CHW1-A00	HannStar	6.0"	720×1280
UG-2832KLBEG04		0.91"	128×32
LQ035Q7DH07	SHARP	3.5"	240×320
LQ035Q7DH08	SHARP	3.5"	240×320
LS035Y8DX04A	SHARP	3.5"	480×800
LQ035Q7DB06M	SHARP	3.5"	240×320
BS050HDE-N41-6Q00	BOE	5.0"	720×1280
LQ150X1LW94	SHARP	15.0"	1024×768
A035VL01 V6	AUO	3.5"	800×480
LQ035Q7DB03F	SHARP	3.5"	240×320
H429AL01 V0	AUO	4.3"	540×960

Product Tags:

lcd panel monitor

innolux lcd panel

Wholesale KOE 10.1inch TX26D24VC0AAA LCD Panel from china suppliers

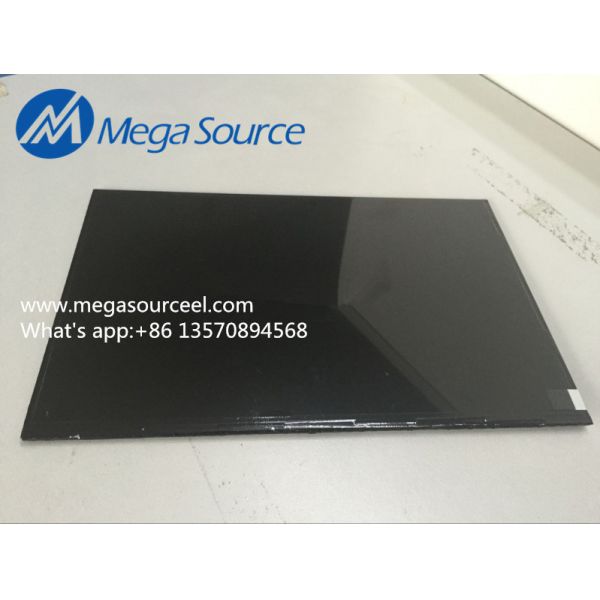

KOE 10.1inch TX26D24VC0AAA LCD Panel Images
