HP A6738AR MAN3735MC 73.5 GB 80 needle 10K rpm SCSI minicomputer hard drive

HP A6738AR MAN3735MC 73.5 GB 80 needle 10K rpm SCSI minicomputer hard drive

MAN3735MC Hard Disk For Fujitsu Details

Fujitsu MAN3735MC POWER DEVICE

• Type : none

Fujitsu MAN3735MC MISCELLANEOUS

• MTBF : 1200000 sec

Fujitsu MAN3735MC EXPANSION & CONNECTIVITY

• Connections : 1 x storage - Ultra160 SCSI - 80 pin Centronics (SCA-2)
• Compatible Bays : 1 x internal - 3.5" x 1/3H

Fujitsu MAN3735MC HARD DRIVE

• Form Factor : 3.5" x 1/3H
• Interface Type : Ultra160 SCSI
• Spindle Speed : 10000 rpm
• Hard Drive Type : internal hard drive
• Form Factor (Short) : 3.5"
• Form Factor (metric) : 8.9 cm x 1/3H
• Form Factor (Short) (metric) : 8.9 cm
• Storage Interface : Ultra160 SCSI
• Interface : Ultra160 SCSI
• Connector : 80 pin Centronics (SCA-2)
• Average Seek Time : 5 ms
• Max Seek Time : 12 ms
• Track-to-Track Seek Time : 0.6 ms
• Average Latency : 2.99 ms
• Data Transfer Rate : 160 MBps
• Internal Data Rate : 84 MBps
• Buffer Size : 8 MB
• Bytes per Sector : 512 Hz
• Non-Recoverable Errors : 1 per 10^14
• Seek Errors : 1 per 10^7

Fujitsu MAN3735MC PERFORMANCE

• Internal Data Rate : 84 MBps
• Seek Time : 5 ms (average) / 12 ms (max)
• Drive Transfer Rate : 160 MBps (external)
• Average Latency : 2.99 ms
• Spindle Speed : 10000 rpm
• Track-to-Track Seek Time : 0.6 ms

Fujitsu MAN3735MC ENVIRONMENTAL PARAMETERS

• Shock Tolerance : 20 g @ 2ms half-sine pulse (operating) / 200 g @ 2ms half-sine pulse (non-operating)
• Max Altitude Operating : 9840 ft
• Min Operating Temperature : 41 °F
• Max Operating Temperature : 122 °F
• Humidity Range Operating : 20 - 80%
• Sound Emission : 39 dB

Fujitsu MAN3735MC STORAGE HARD DRIVE

• Compliant Standards : S.M.A.R.T.

Fujitsu MAN3735MC HEADER

• Brand : Fujitsu
• Product Line : Fujitsu Enterprise
• Model : MAN3735MC
• Compatibility : PC

Fujitsu MAN3735MC INTERFACE REQUIRED

• Connector Type : 80 pin Centronics (SCA-2)
• Gender : male

Fujitsu MAN3735MC DIMENSIONS & WEIGHT

• Depth : 5.7 in
• Width : 4 in
• Height : 1 in
• Weight : 1.65 lbs

Fujitsu MAN3735MC BAY REQUIRED

• Type : internal
• Form Factor : 3.5" x 1/3H
• Form Factor (metric) : 8.9 cm x 1/3H

Fujitsu MAN3735MC SLOT REQUIRED

• Type : none

Fujitsu MAN3735MC RELIABILITY

• Seek Errors : 1 per 10^7
• Non-Recoverable Errors : 1 per 10^14
• MTBF : 1,200,000 hours

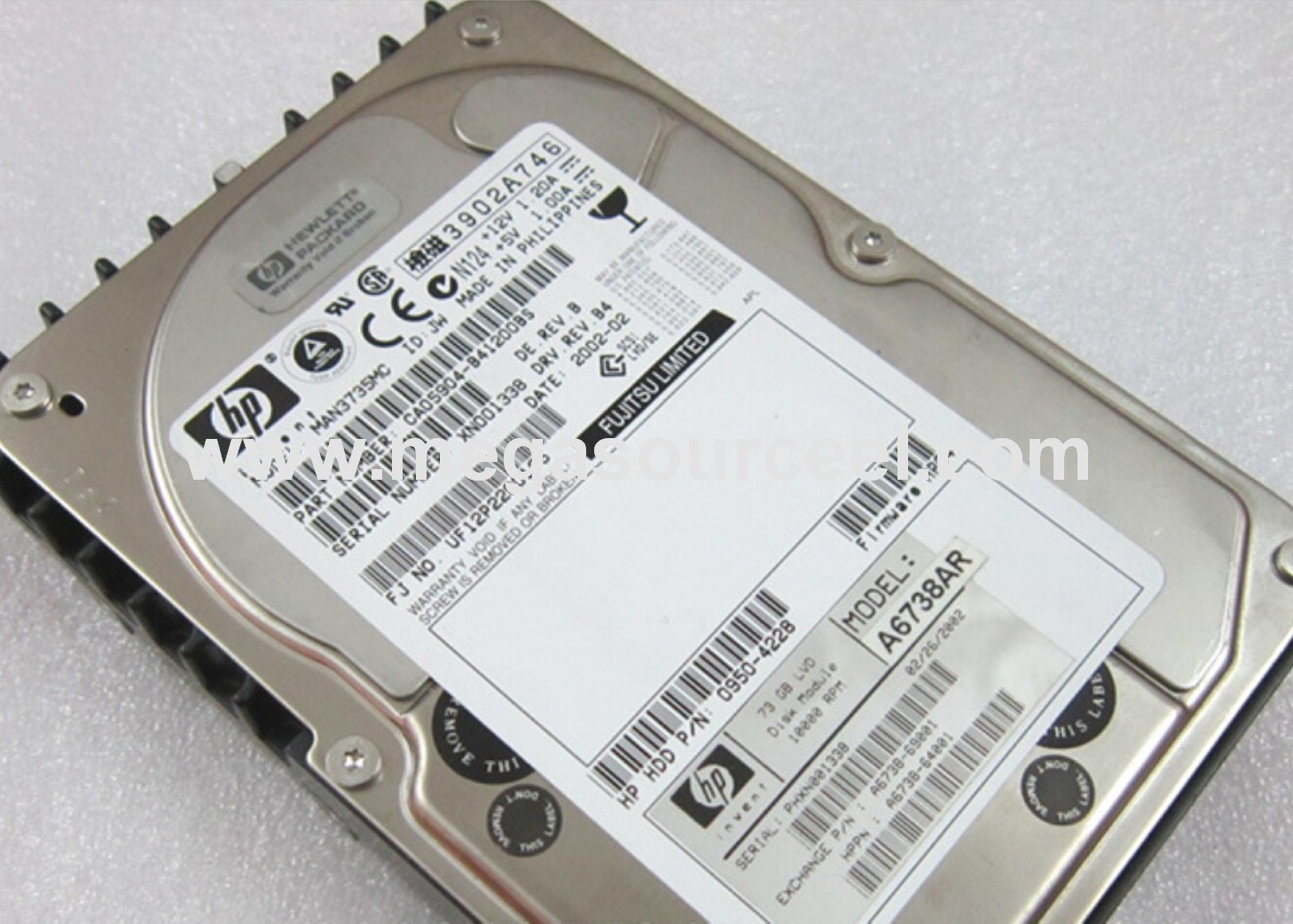

Detail picture for 73.5 GB 80 needle 10K rpm SCSI minicomputer hard drive HP A6738AR
